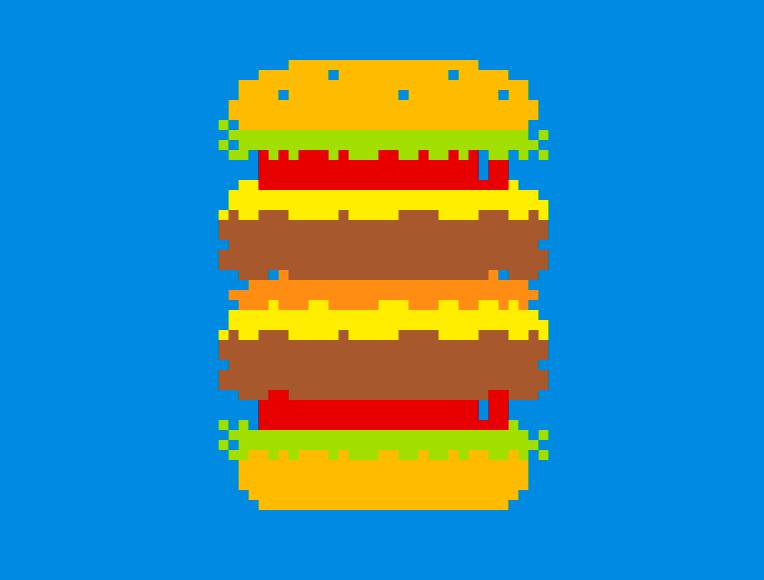

 ScrewtapelloJan 18, 2023Liked by CyanneI spent some time looking into your logic bug, but I couldn't figure out exactly how it worked, since I got confused by the way you were shuffling values between registers and memory. I wondered how the code would look if it worked in the other direction - keeping values in memory and only loading them into registers when necessary. This is what I came up with (excluding the tile map and tile data, which is the same as your code):; Let \$50+51 be our destination in VRAM; since VRAM is outside the zero-page,; we need two bytes LDA #\$00 STA \$50 LDA #\$02 STA \$51; Let \$52 be our source in the tile-map LDA #\$20 STA \$52; The tile-map is always in the zero-page,; but let's use a 16-bit address; so we can use indirect addressing LDA #\$00 STA \$53draw_tile_loop:; Each tile starts at the first pixel LDY #\$00; Read the value pointed to by \$0052; into the accumulator.; Without a "vanilla indirect" variant of LDA,; we'll use "indirect, Y-indexed"; since we just set Y to 0. LDA (\$52),Y; If the tile-start is \$FF... CMP #\$FF; ...then we're at the end of the tile map BEQ all_done; Otherwise, let \$54 be our source in the tile STA \$54; Keep \$55 as 00, so we can use indirect mode LDA #\$00 STA \$55draw_tile_data_loop:; Copy the pixel from the tile data to VRAM LDA (\$54),Y STA (\$50),Y; Prepare to copy the next pixel INY; Have we drawn all 8 pixels of this tile? CPY #\$08; If not, go back and do the next one. BNE draw_tile_data_loop; Otherwise, we've done this tile,; let's move to the next tile in the tile map; We know the tile map is all in zero-page,; so we can get away with INC. INC \$52; Let's move to the next tile in VRAM too; Since this is outside zero-page,; we need to do a full 16-bit addition with carry CLC LDA \$50 ADC #\$08 ; 8 pixels in a tile! STA \$50 LDA \$51 ADC #\$00 ; propagate the carry STA \$51 JMP draw_tile_loopall_done: BRKAs a bonus, it demonstrates the "indirect Y-indexed" mode! This version might be considered a little more wasteful, since it spends bytes of the zero-page to store values that will always be 0, and because it uses "LDA (\$52),Y" to emulate the missing "indirect zero-page" mode. It works, though, and the inner pixel-copying loop ("draw_tile_data_loop") is quite tidy, I think!Expand full comment
